Managing bulk material volumes and optimizing storage capacity are critical components of effective inventory and supply chain management. Traditional methods—such as visual estimation or occasional drone surveys—often fall short in accuracy and fail to provide real-time insights. Leveraging digital bulk material monitoring and storage management solutions, powered by LiDAR technology, offers a comprehensive approach that not only measures material volumes continuously but also identifies available storage capacity, making it possible to plan efficiently across diverse settings.
However, to fully leverage the benefits of digital bulk material monitoring and storage management, a well-thought-out sensor layout and simulation process are essential. Proper planning ensures all relevant areas are monitored, blind spots are minimized, and the system delivers optimal results.
LiDAR Technology for Digital Bulk Material Monitoring and Storage Management
LiDAR technology presents significant advantages over traditional methods for bulk material measurement. In addition to offering a real-time view of material volumes, it enables users to assess storage capacity directly within existing spaces. This added capability facilitates better decision-making, as users can quickly identify underutilized areas or anticipate when additional storage may be needed. Unlike manual or sporadic measurement approaches, digital bulk material monitoring delivers a continuous stream of precise data, providing a solid foundation for operational planning and real-time adjustments.
With 24/7 access to updated inventory information, operators can integrate LiDAR data into existing systems or view it through customized dashboards for seamless digital storage management. Remote monitoring capabilities add flexibility, especially for large or difficult-to-access areas.
Key Considerations for Sensor Layout Planning
A successful digital bulk material monitoring and storage management project begins with a thorough understanding of the environment in which the sensors will operate. Factors such as facility layout, material pile characteristics, and potential movement patterns should all inform sensor placement to ensure comprehensive coverage.
- Facility Dimensions
The size and shape of the monitoring area directly influence the number and placement of sensors required. Larger areas may need multiple sensors to achieve full coverage, especially if there are obstacles or irregularities in the space. - Existing Infrastructure
Leveraging existing structures, such as walls or support beams, can facilitate sensor mounting and reduce installation costs. Utilizing available infrastructure also helps minimize disruptions to ongoing operations. - Material Characteristics
Different materials settle and pile up in unique ways, affecting how sensor data should be interpreted. Understanding these patterns aids in determining optimal sensor angles and orientations. - Material Height and Location of Transfers
Knowing the maximum height of bulk material piles and pinpointing areas where material is added or removed is essential for accurate volume measurement. This knowledge helps in selecting the right sensors and strategically placing them to capture all critical zones. - Storage Capacity Awareness
With the ability to gauge storage capacity through LiDAR, you can allocate resources more effectively, avoid unnecessary storage costs, and plan for expansions or adjustments in storage needs. Digital bulk material monitoring solutions make these insights actionable, streamlining the management process.
Sensor Placement and Simulation Process
The next step is to translate these site-specific factors into a 3D model of the facility, which enables a thorough simulation of the sensor layout. This model allows for precise planning and can help avoid costly adjustments post-installation.

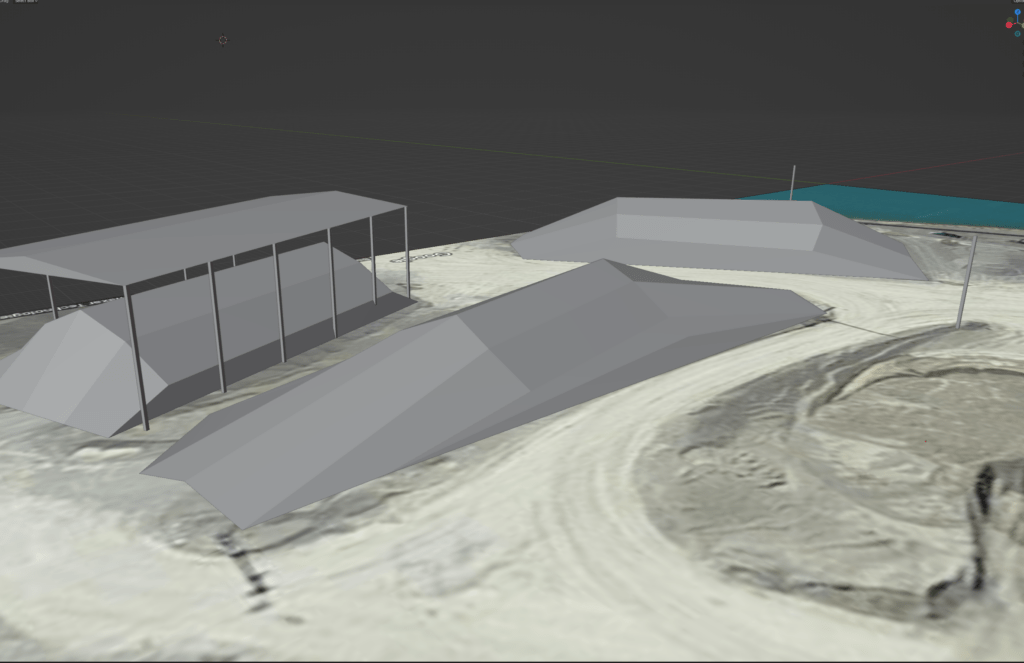

- Site Modeling

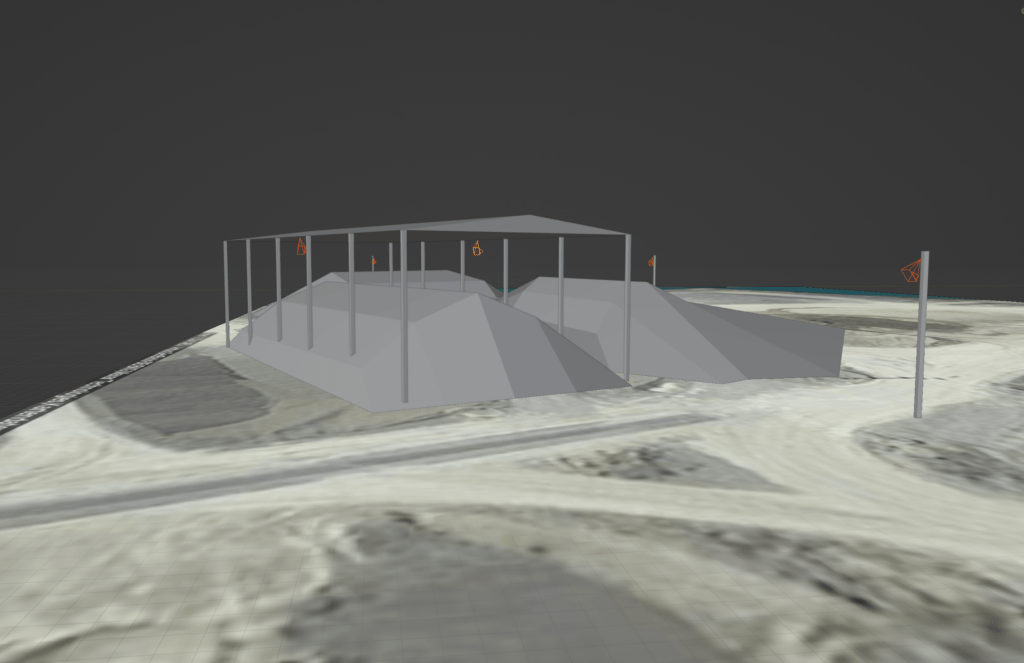

A 3D model of the facility, including any material piles and infrastructure, is created to simulate potential sensor placements. This model is the foundation for determining ideal sensor positioning and ensuring that all areas are adequately covered. - Strategic Sensor Placement
Using the 3D model, sensors are virtually placed to identify optimal angles, minimizing overlap while covering all necessary areas. In cases where multiple sensors are used, it’s crucial to design an overlapping field of view to avoid blind spots and ensure consistent data collection across the monitored space. - Point Cloud Simulation

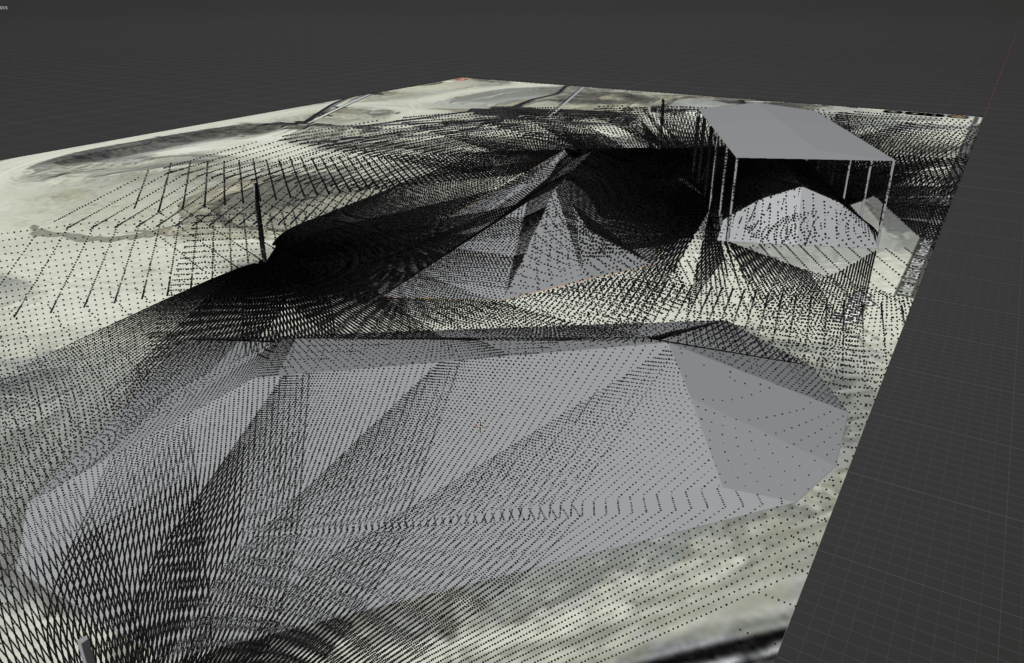

Each sensor’s point cloud is simulated based on its horizontal and vertical viewing angles. This simulation provides a clear view of how effectively the sensors cover the intended areas, allowing for adjustments before physical installation. - Volume Data Simulation

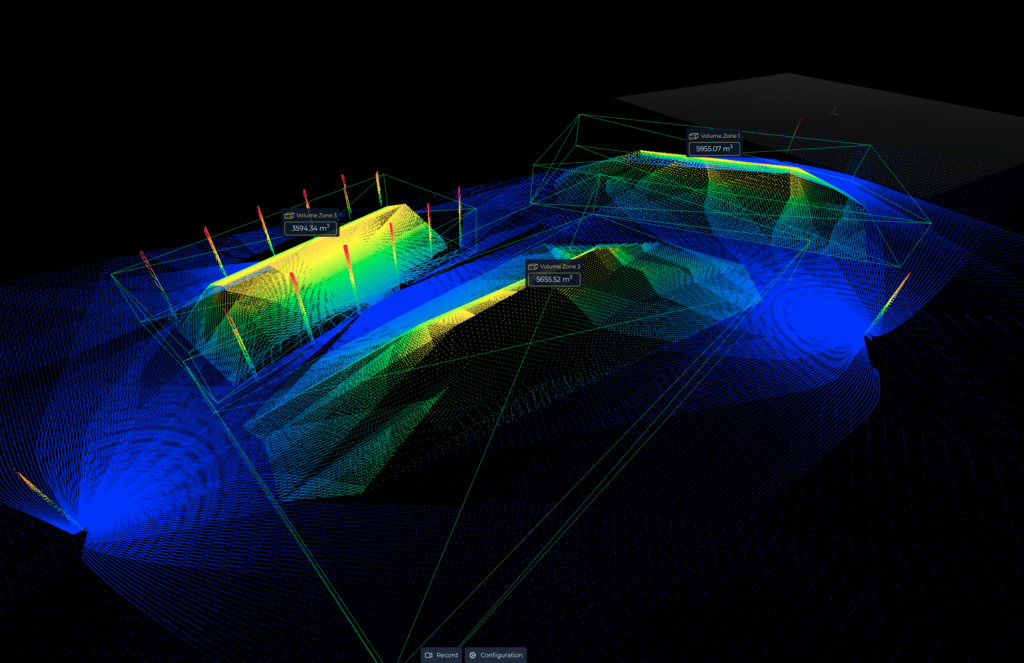

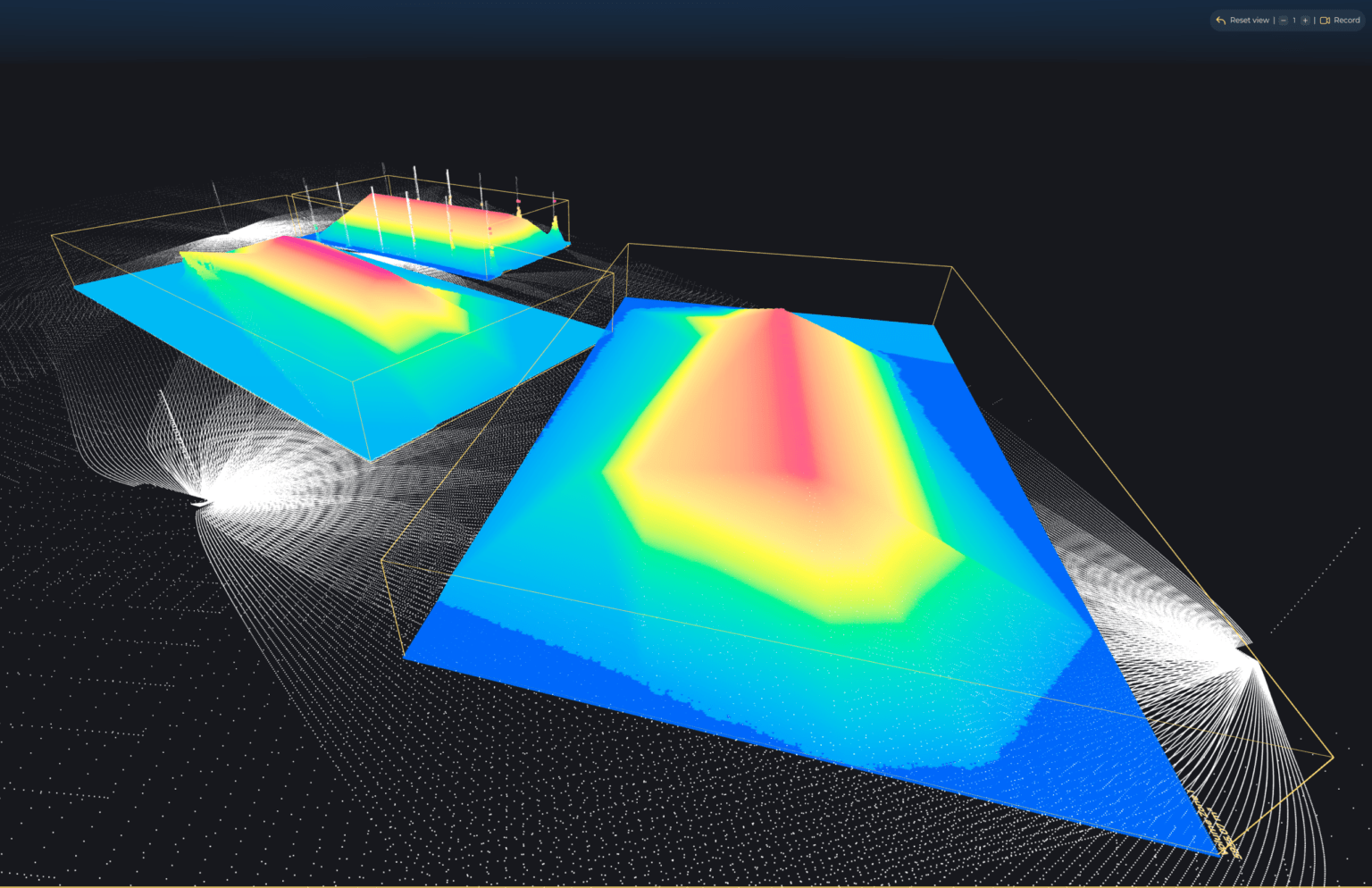

Within the model, specific 3D zones for volume measurement are defined, enabling a simulated test of data accuracy. This step confirms that the setup can capture accurate, reliable measurements of both material volume and storage availability, ready for real-world implementation.
From Simulation to Implementation
Following a successful simulation, the system moves into the physical setup phase. This includes precise installation of the sensors and any necessary supporting infrastructure, such as mounts or poles for outdoor areas. Once installed, the sensors are connected and calibrated, with their individual point clouds integrated into a single, comprehensive view of the monitored site.
Conclusion
Strategically planning the layout and conducting a thorough simulation of LiDAR sensors is essential to achieving a successful digital bulk material monitoring and storage management system. With LiDAR, businesses gain continuous access to up-to-date volume and capacity data, empowering them to optimize inventory management and respond proactively to changes in storage needs. By following a structured planning and simulation approach, companies can make informed, data-driven decisions to enhance their supply chain operations.
